4025

  • Featuring:
  • 25 Horsepower
  • 2,200 lbs. Loader Lift Capacity At Pins
  • Hydro Max Transmission
  • Metal Hood & Fenders
  • Cast Iron Axles
  • Dual HST Pedals
  • 3 Range Transmission
  • Independent PTO
  • Power Steering
  • Selectable 4wd
  • Differential Lock
  • 6 Year Powertrain Warranty

Payments As Low As

$319.00

Per Month*

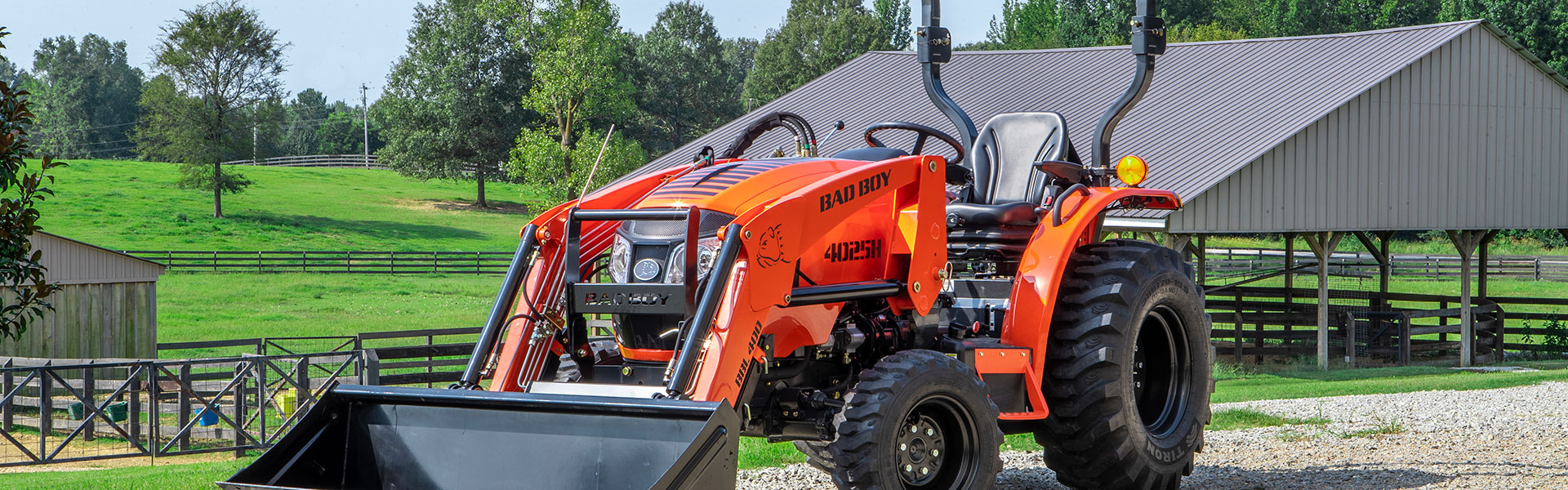

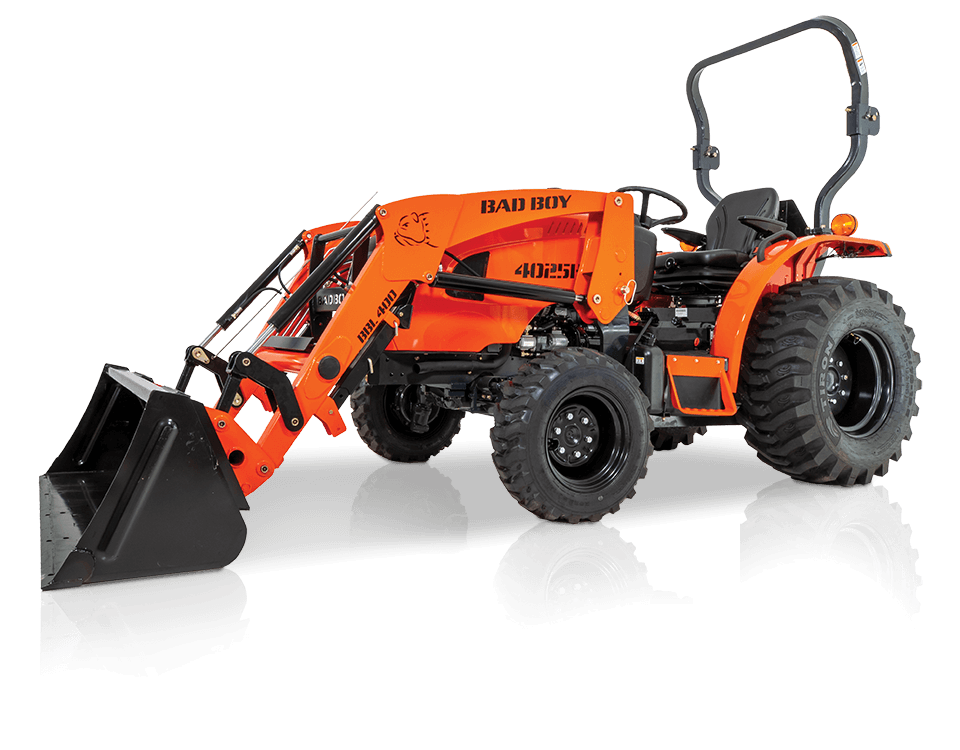

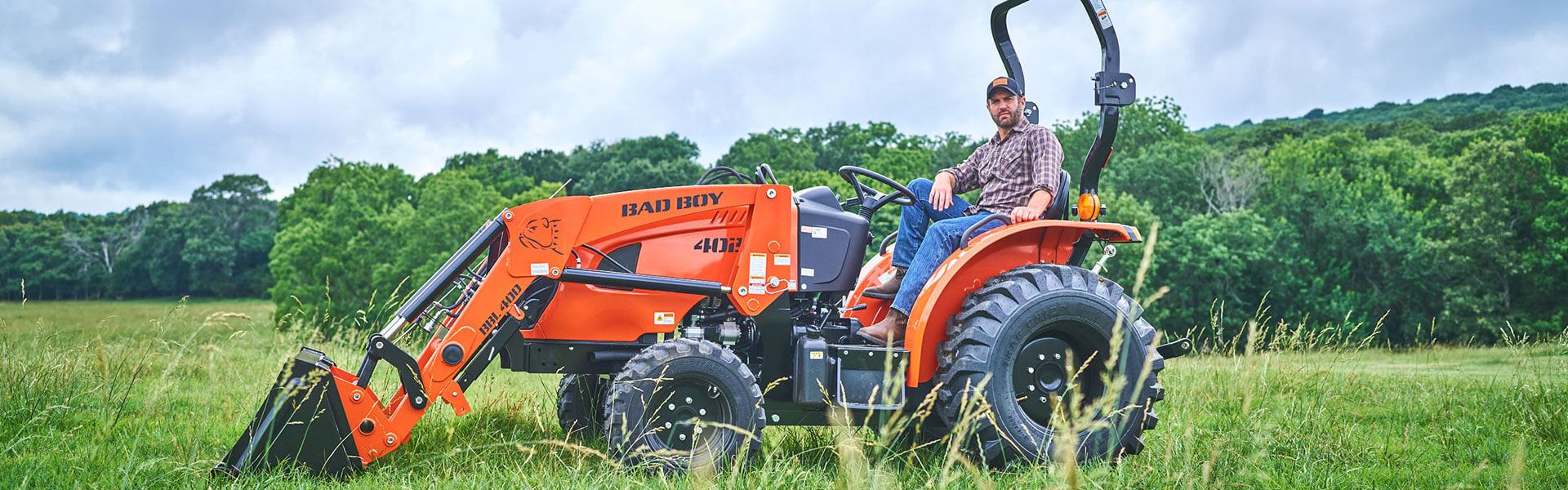

Bad Boy Tractors 40 Series Model 4025 Compact Tractor With Front End Loader

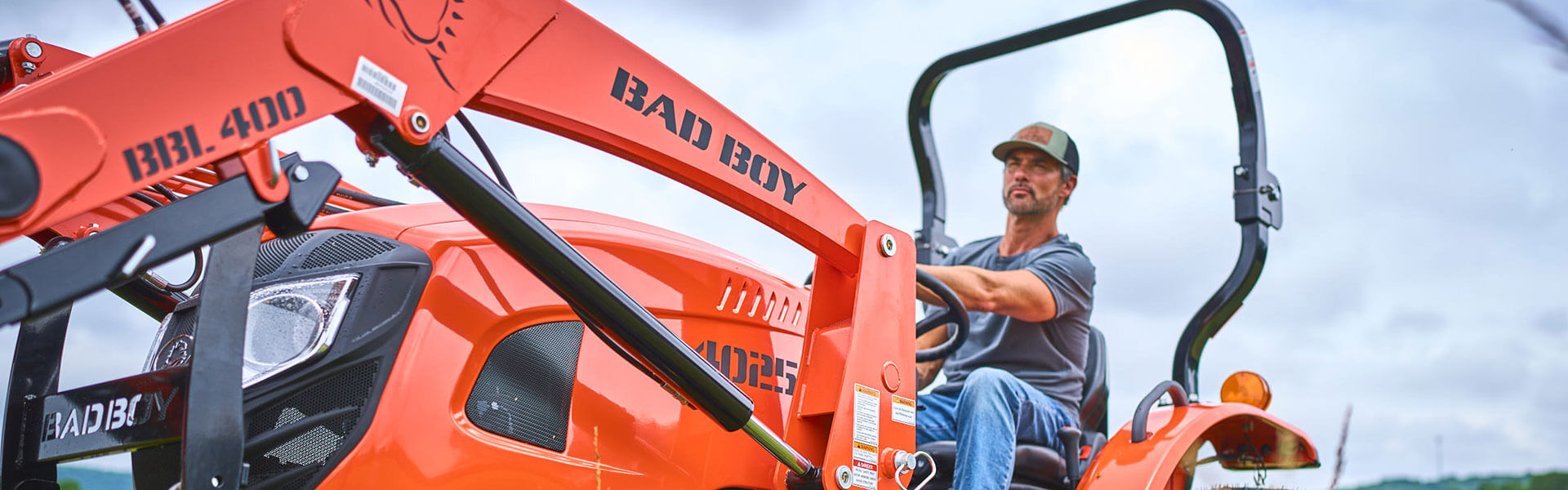

Bad Boy 4025 Compact Tractor

4025 Tractor Specs

Download Manual

4025 Engine

Engine
3 Cylinder, Water-Cooled, Diesel
Engine HP @ RPM
25
Displacement (in.)
104.5
Number Of Cylinders
3
Fuel Tank (gal.)
7.1

4025 Drivetrain

Transmission
HST
Number Of Speeds
3 Range
Clutch
No
Brakes
Wet, Multi-Disc

4025 Hydraulics

Type
Hydro-Static Power Steering
Total Hydraulic Flow (Power Steering + Implement)
11.5 (4+7.5)
3-Point Hitch
Cat 1
Rear Remote Valve
Optional (Up To 2)
3-Point Hitch Lift Capacity @ 24" Behind Lift Point @ Ball Ends (lbs.)
1,100

4025 Dimensions

Overall Length
134.88"
Overall Width
56.7"
Overall Height
104.06"
Wheelbase
65.7"
Minimum Ground Clearance
13.1"
Weight
2,970 lbs.

4025 PTO

Type
Independent
Rear (Mid) PTO Speed
540
PTO HP
19.1

4025 Electrical

Battery
12 V, 540 CCA
Alternator
12 V, 50 A

4025 Wheels & Tires

IND (Front)
25X8.50-14
IND (Rear)
15-19.5

4025 Loader - Model BBL400

Standard Bucket Size (in.)
62
Maximum Lift Height (in.)
104
Dig Depth (in.)
1.8
Lift Capacity To Full Height At Pivot Pin (lbs.)
2,200
Breakout Force (lbs.)
3,660
Shipping Weight (lbs.)
1,007

4025 Backhoe - Model BBH400

Standard Bucket Size (in.)
16
Type
Subframe-Mounted, Quick Attach
Maximum Dig Depth (in.)
92.2
Dig Force Bucket (lbs.)
4,380
Shipping Weight (lbs.)
1,270

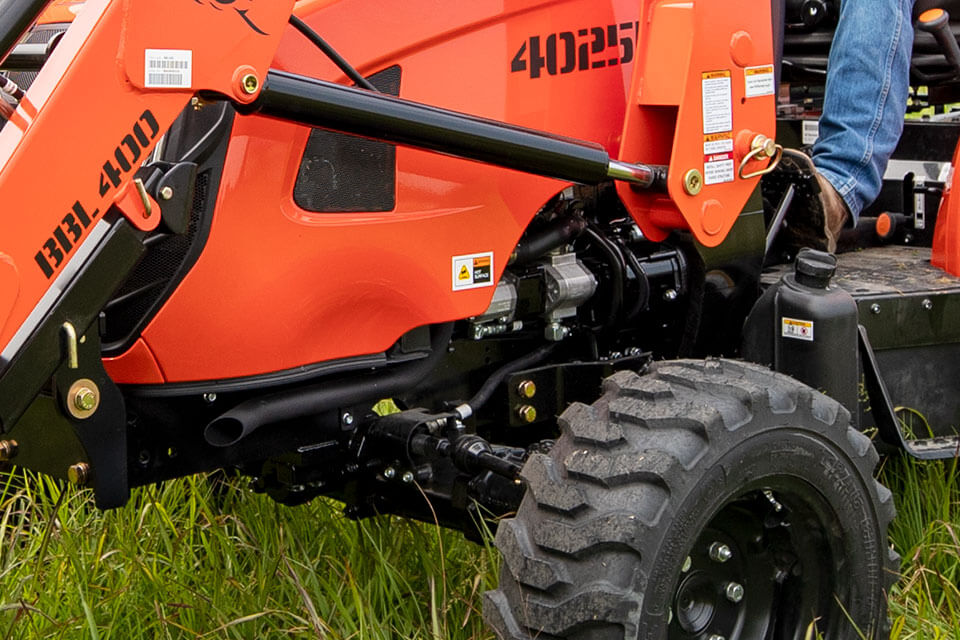

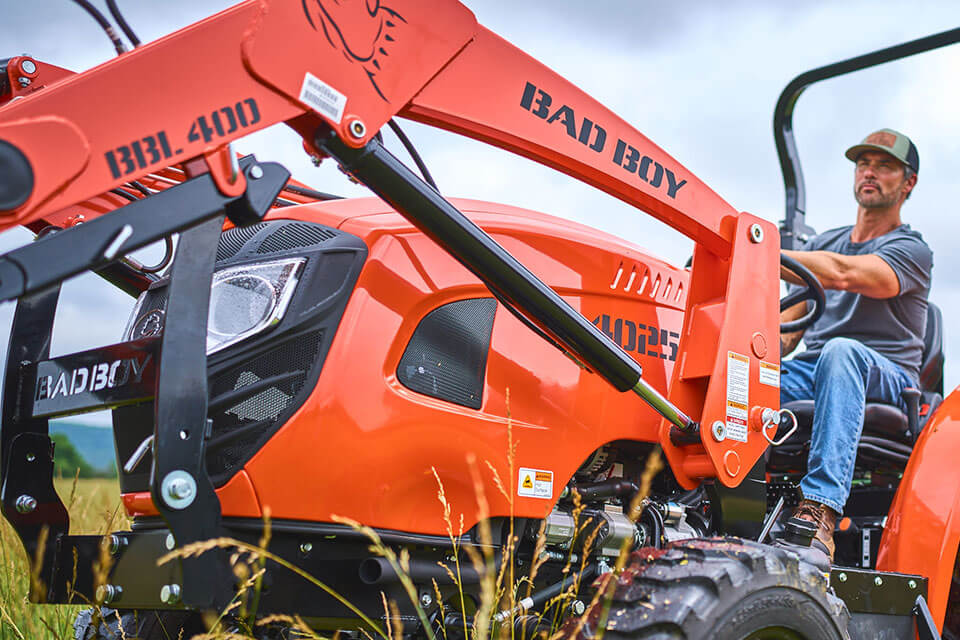

The Best Frame in the Game

The Best Frame in the Game

Never back down from a challenge because this tractor is as tough as they come. The 4025's frame is the biggest in its class and with more ground clearance, so it can breeze through chores usually reserved for much larger tractors.

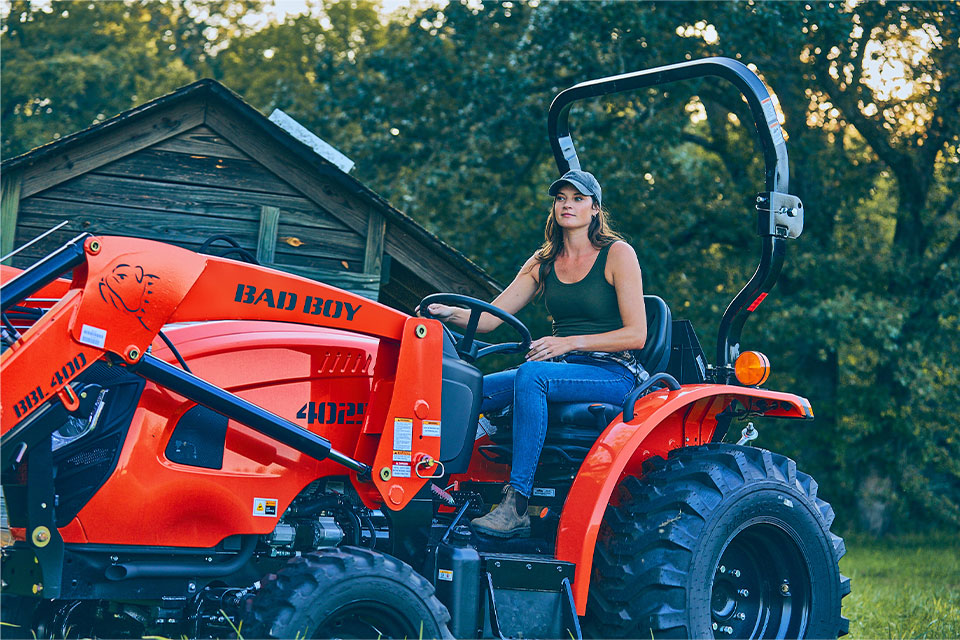

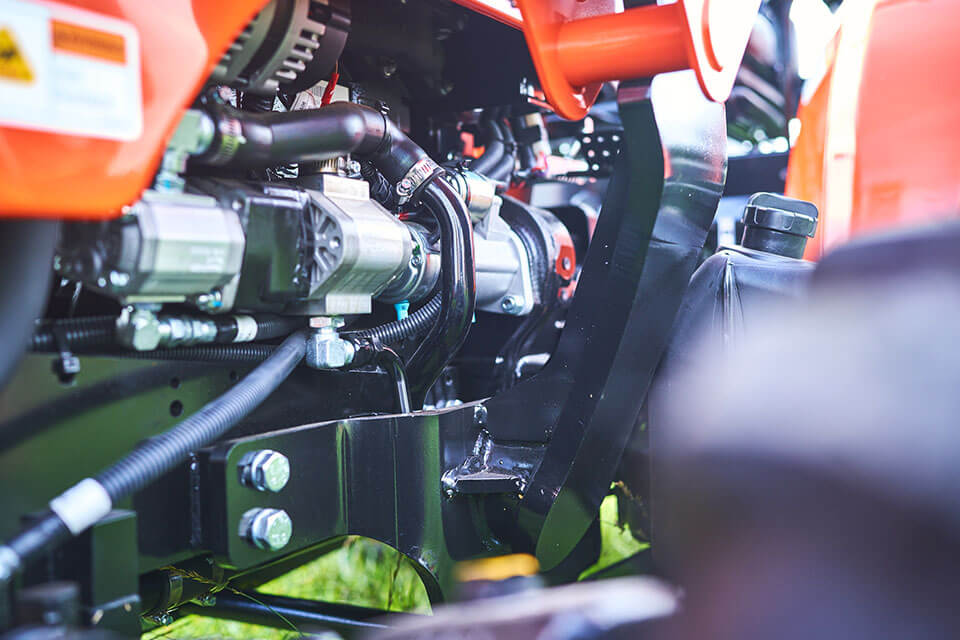

Better Range

Better Range

The 4025's three-range hydro-static transmission gives you flexible drive options. Go with low or medium when you're doing the work, and high during transport.

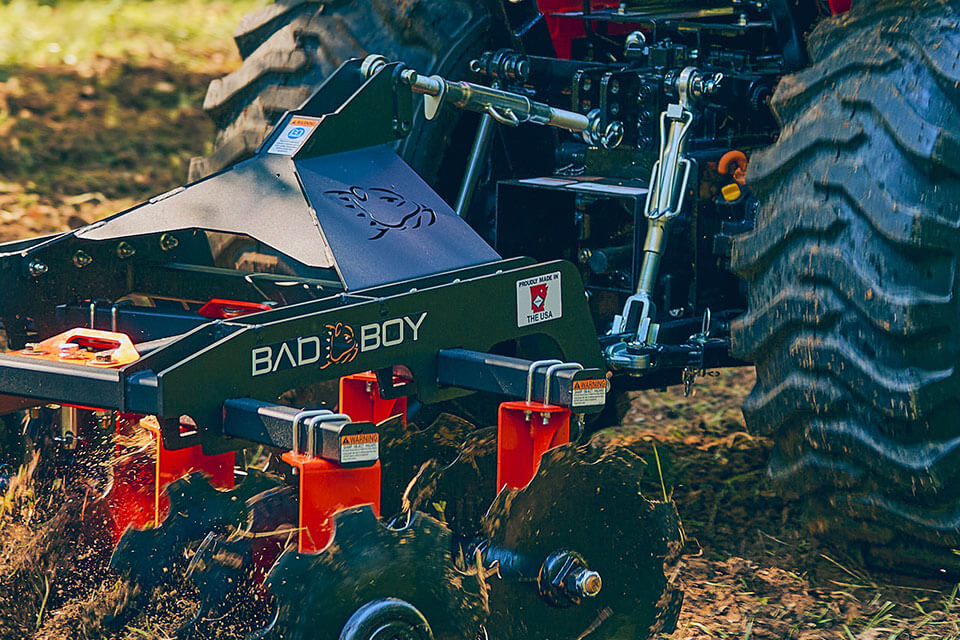

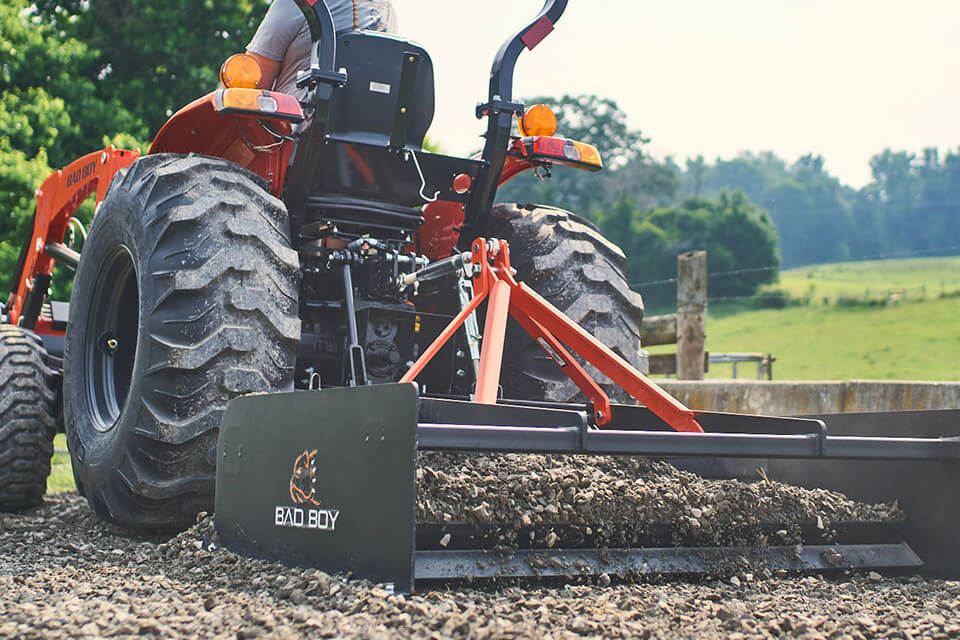

Get Hitched

Get Hitched

The Bad Boy tough 3-point hitch is made to last longer and work harder. Built from heavy-gauge, welded and fabricated steel, it's more than ready to pull its weight around your property.

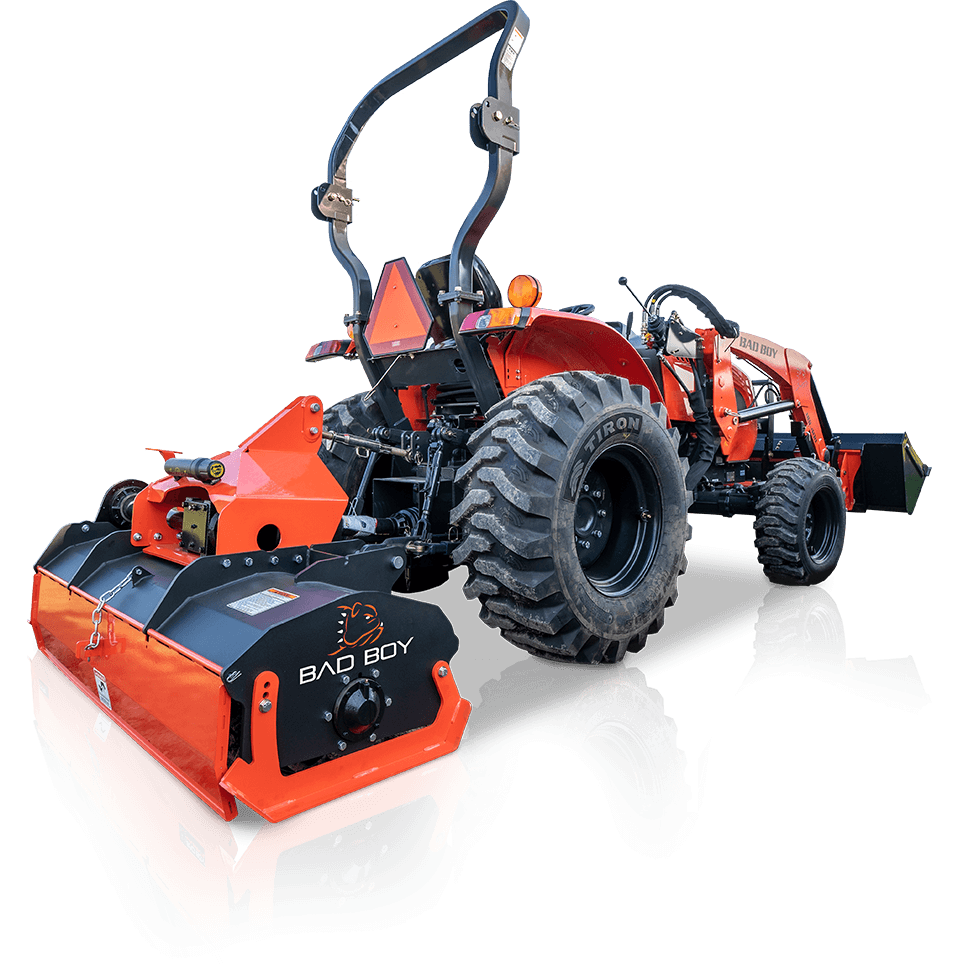

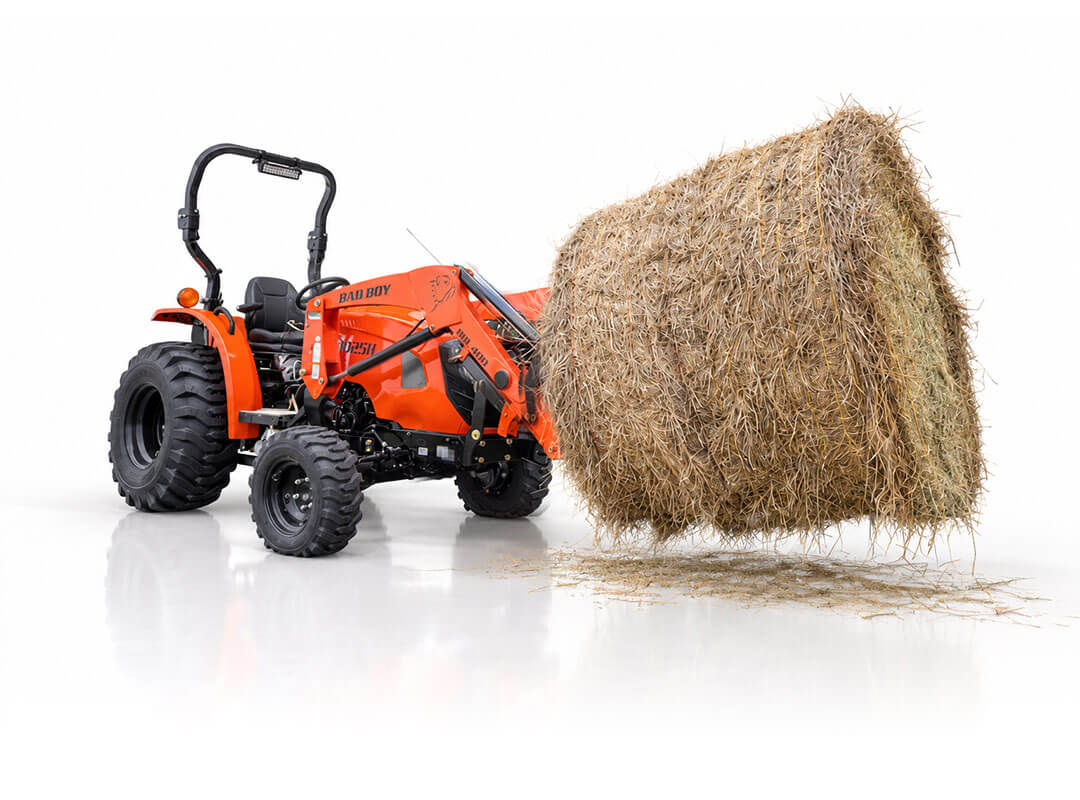

Implements And Cutters

Get the job done with our lineup of implements and cutters. Every Bad Boy Tractor features a tough 3-point hitch and quick attach front loader built for a lifetime of work around the field and farm.

Learn More
Tractor Implements And Cutters
Learn More About
The 4025

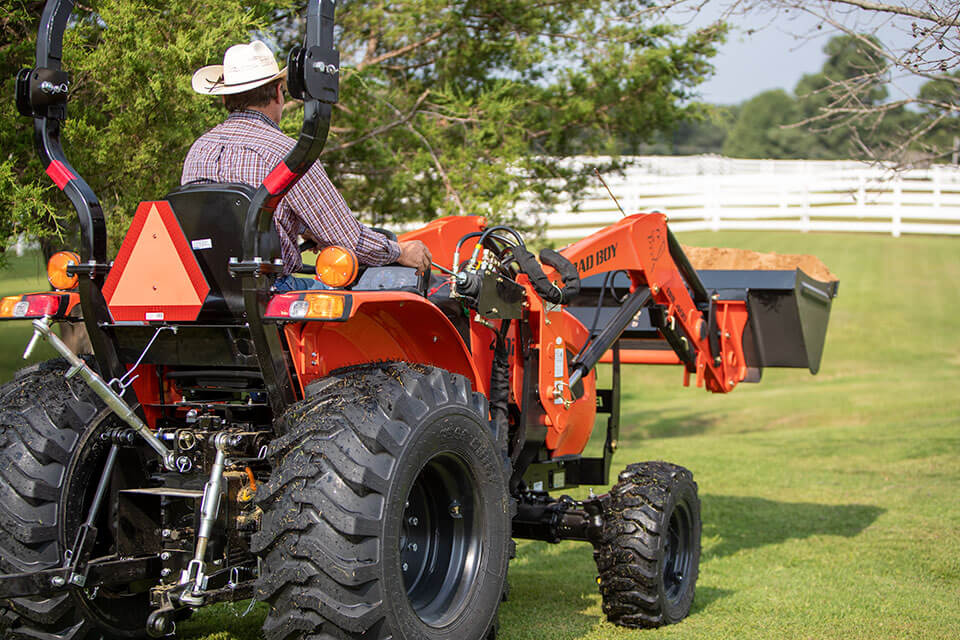

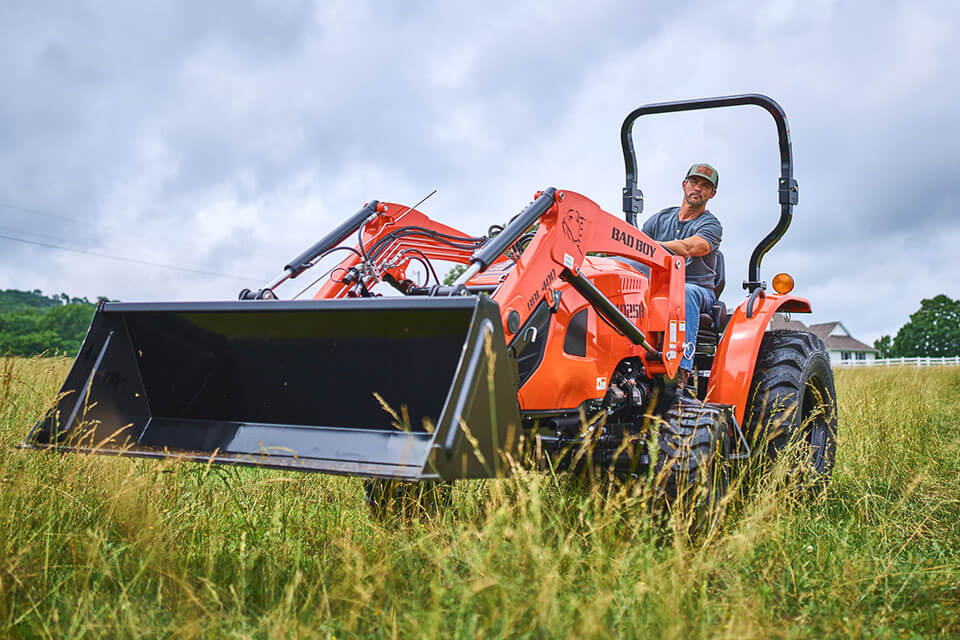

Get to Work

The Bad Boy 4025 Series Tractor is as tough as they come. It has the largest frame of any tractor in its class, making it stronger and giving it more ground clearance than the competition. Equipped with a 25-horsepower diesel engine, up to 2200 lbs. of lifting power, it can handle chores usually reserved for much larger tractors. In terms of pulling power, this Bad Boy features differential lock, automatically equalizing power to both rear wheels. If you need even more boost, use the selectable 4-wheel drive to engage the front wheels and maximize traction and pulling power. If you want durability and performance, this compact tractor is all Bad Boy.

Get to Work

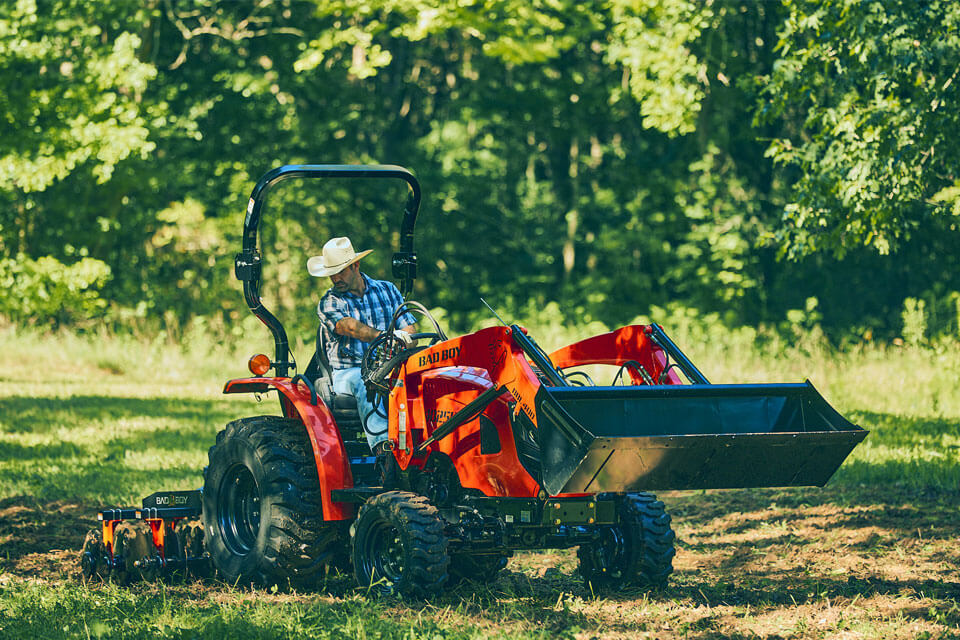

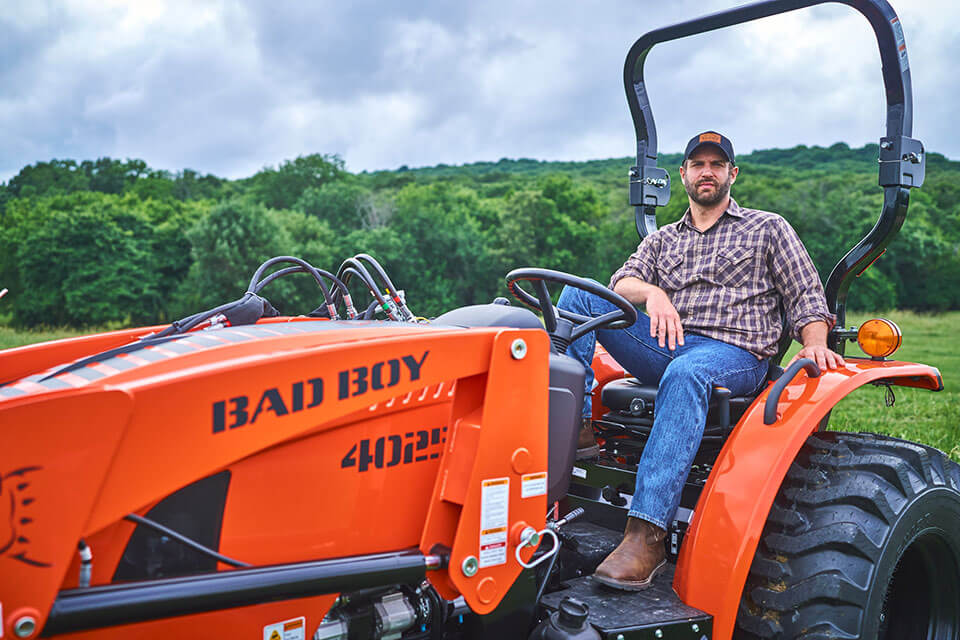

Ready For Any Job

Getting the job done right starts with a Bad Boy 4025 Series Tractor. And thanks to our tough 3-point hitch, quick attach front loader and latch implements, getting the job done just got quicker and easier. All of our implements are manufactured with Bad Boy's industry-leading standards. Made from heavy-gauge, welded and fabricated steel, they're more than ready to pull their weight around your property. The Bad Boy line-up includes; Box Blades, Land Graders, Rotary Tillers, Disc Harrows, Forks and Hitches, Front Grapples, Grader Blades, Landscape Rakes and Rotary Brush Cutters. They're built for a lifetime of work around the field and farm.

Ready For Any Job

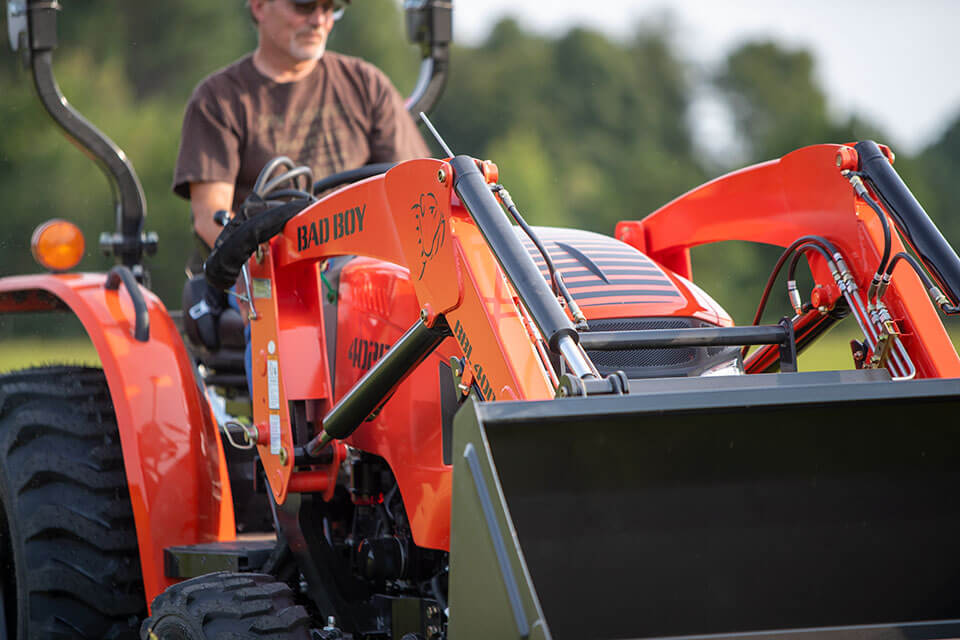

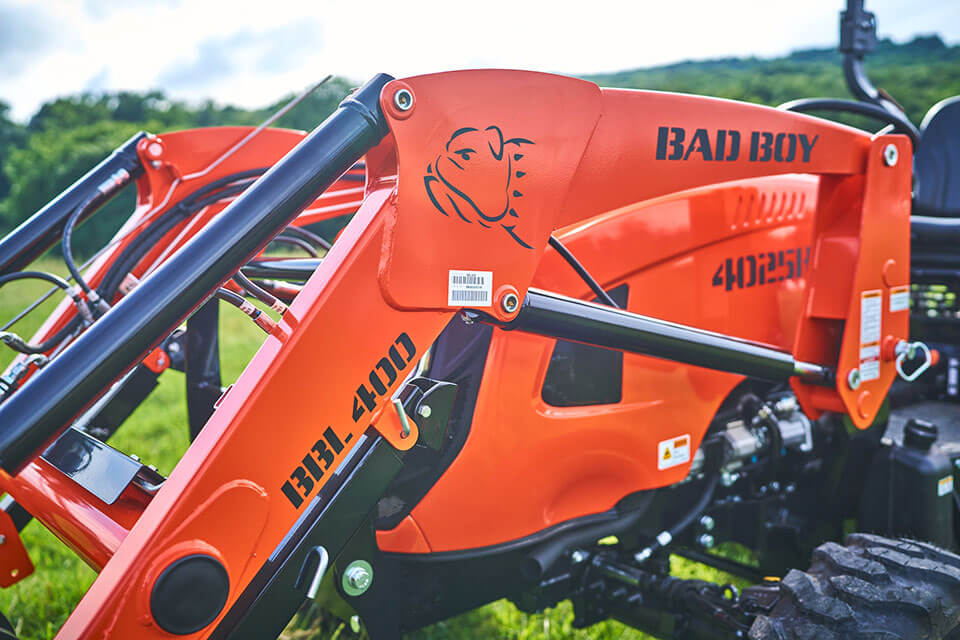

This Steel is the Real Deal

Bad Boy is renowned for its toughness and durability. The Bad Boy 4025 Compact Tractor is no exception. With a heavy-duty steel frame, hood and fenders along with cast iron axles, this tractor is built to handle just about anything you throw its way. It even comes with a 6-year powertrain warranty. Now you can get the same legendary Bad Boy quality in a compact tractor package.

This Steel is the Real Deal

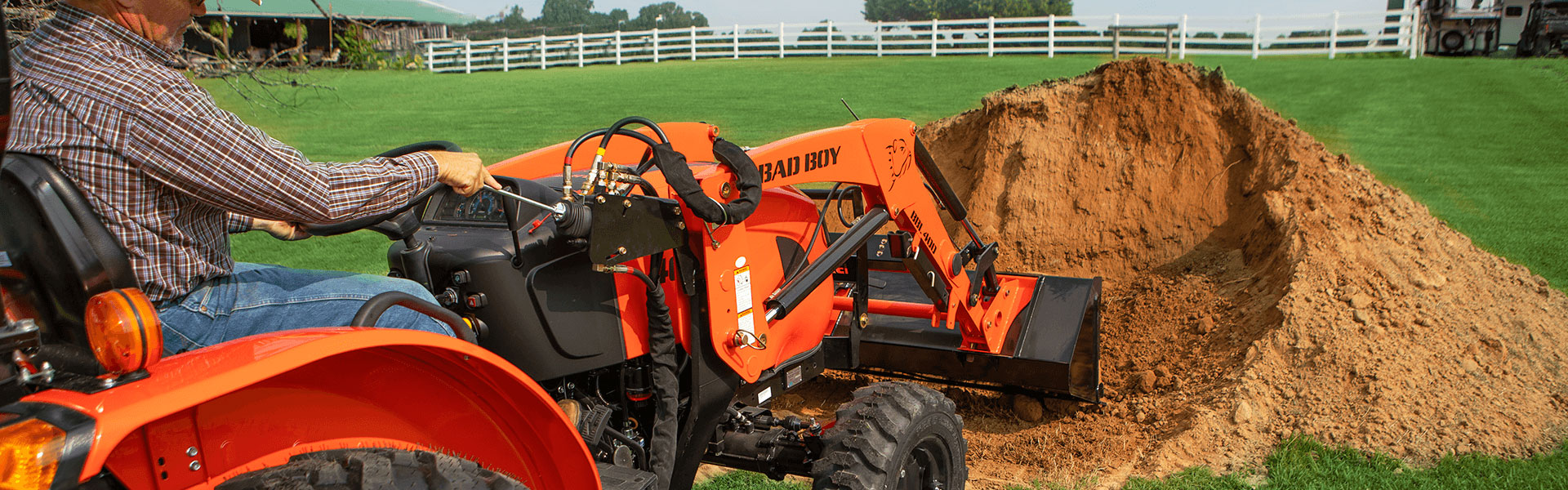

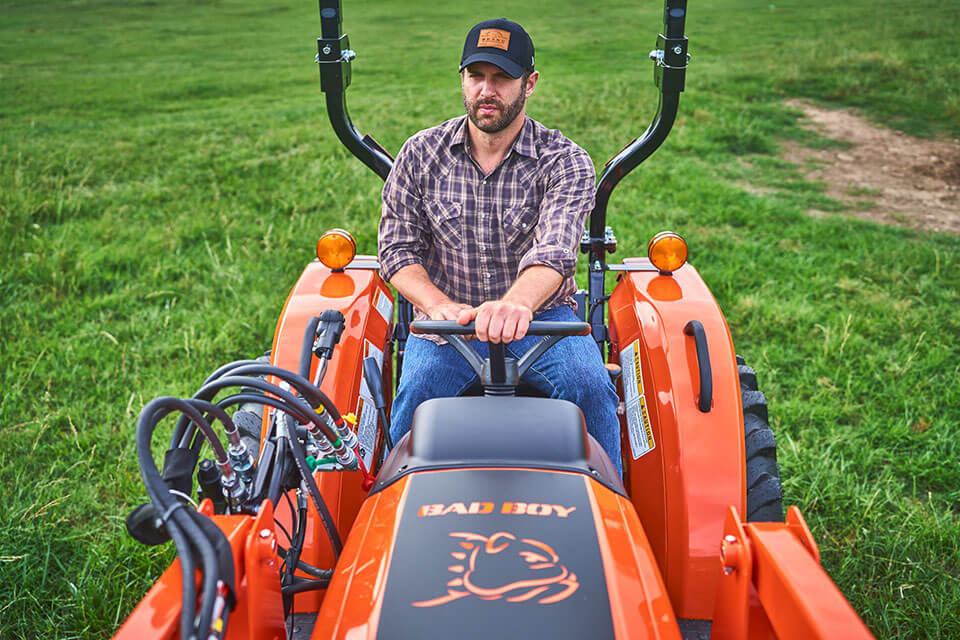

Experience Hydro Max Transmission

Our Bad Boy Hydro Max Transmission gives you the power to automatically increase engine RPMs evenly with just the push of a pedal. So no, when you drive Bad Boy's 4025 Tractor, you do not have to pre-set an engine throttle position with this Bad Boy. Smooth and quiet, this 3-range transmission can be set to low or medium for work or high for transport. The 4025 also comes with power steering and cruise control, so you can enjoy maximum performance with minimal effort.

Experience Hydro Max Transmission
